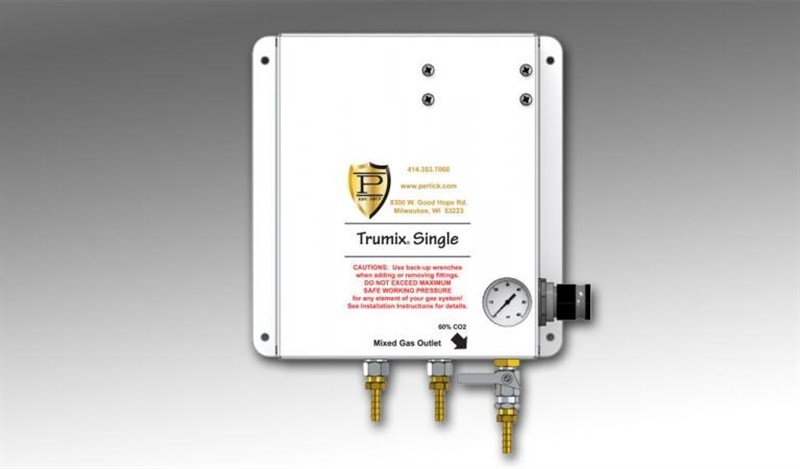

CO2/N2 Blender, Single Blend 70% CO2 - 30% Nitrogen, 120 - PS1G Stadium Application Plus - 120 PSIG

Gas Blenders blend the correct ratios of carbon dioxide and nitrogen, thereby reducing waste of over-carbonated (foamy) or flat beer. This is an extremely accurate CO2-Nitrogen Blender. Available in single or double blend. Unit preset at the factory. Provided with a 1/4" female pipe thread connection for use with any fitting required.

QUICK FEATURES

• Single and Double Blend models available
• Standard, High Volume, and Stadium Application Blender options available
• CO2/N2 Blend options - 70/30, 60/40, 50/50, and 25/75
• Hook-Up: Single Blend - Two inlet lines and one outlet line
• Double Blend - Two inlet lines and two outlet lines
• Fittings: Panel comes with standard 1/4" female NPT fittings
• Accuracy and Flow Range: Maintains accuracy of +/- 2% of full scale or better within the flow range of .4 to 40 liters per minute (.85 to 85 cubic feet per hour)
• Inlet Pressures: 55-150 psi, however, panel can be set to match any conditions
• Blender tuned at inlet pressure of existing system; Standard 55 and 70 psi
• Outlet Pressures: Adjustable outlet pressures of 0-60 psi; The maximum outlet pressure will always be 10 psi lower than the lowest inlet pressure
• The panel can also be ordered with outlet pressure set to custom ranges
• Size: 9.5" wide (including mounting flanges x 10" high x 4.5" deep)
