CO2/N2 Blender, Single Blend 50% CO2 - 50% Nitrogen,110 - PS1G Stadium Application - 110 PSIG
Model#:
69900S50SA

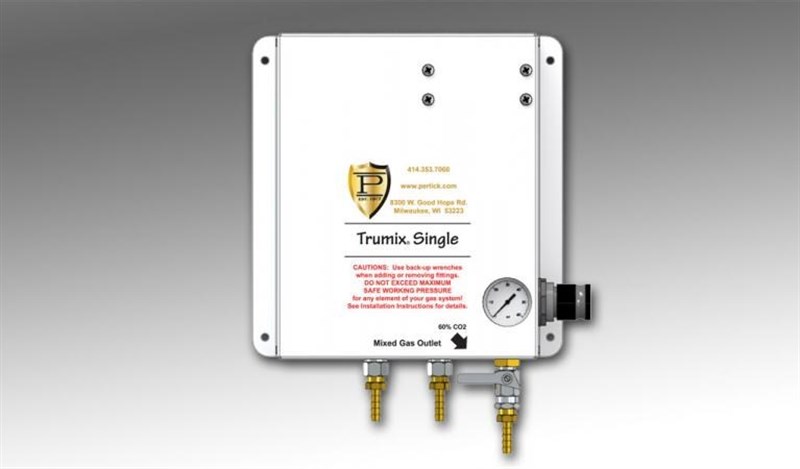

McDantim's Trumix CO2/N2 Blender, Single Blend 50% CO2 - 50% Nitrogen,110 - PS1G Stadium Application - 110 PSIG
- Blender tuned at inlet pressure of existing system
- Standard 55 and 70 psi; Outlet Pressures: Adjustable outlet pressures of 0-60 psi; The maximum outlet pressure will always be 10 psi lower than the lowest inlet pressure
- The panel can also be ordered with outlet pressure set to custom ranges
- Size: 9.5" wide (including mounting flanges x 10" high x 4.5" deep)
$3,000.00
Disclaimer: This price is the standard published price for this product before discounts with our products typically sold at lower prices by dealers.
Gas Blenders blend the correct ratios of
carbon dioxide and nitrogen, thereby reducing waste of over-carbonated (foamy)
or flat beer. This is an extremely accurate CO2-Nitrogen Blender. Available in
single or double blend. Unit preset at the factory. Provided with a 1/4" female
pipe thread connection for use with any fitting required.
QUICK FEATURES
- Single and Double Blend models available
- Standard, High Volume, and Stadium Application
Blender options available
- CO2/N2 Blend options - 70/30, 60/40, 50/50, and
25/75
- Hook-Up: Single Blend - Two inlet lines and one outlet line
- Double Blend - Two inlet lines and two outlet lines
- Fittings: Panel comes with standard 1/4"
female NPT fittings
- Accuracy and Flow Range: Maintains accuracy of
+/- 2% of full scale or better within the flow range of .4 to 40 liters per
minute (.85 to 85 cubic feet per hour)
- Inlet Pressures: 55-150 psi, however, panel
can be set to match any conditions
- Blender tuned at inlet pressure of existing
system
- Standard 55 and 70 psi; Outlet Pressures: Adjustable outlet pressures of 0-60 psi; The maximum outlet pressure will always be 10 psi lower than the lowest inlet pressure
- The panel can also be ordered with outlet pressure set to custom ranges
- Size: 9.5" wide (including mounting flanges
x 10" high x 4.5" deep)
Illuminated Option : No
Product Group : Air/Gas Distribution Equipment
Specific CO2/N2 Ratios : Single Blend 50% CO2 - 50% Nitrogen,110-PS1G Stadium Application - 110 PSIG
Type : Single Blend 50% CO2 - 50% Nitrogen,110-PS1G Stadium Application - 110 PSIG
NSF Rated : No
Commercial / Residential : Commercial
