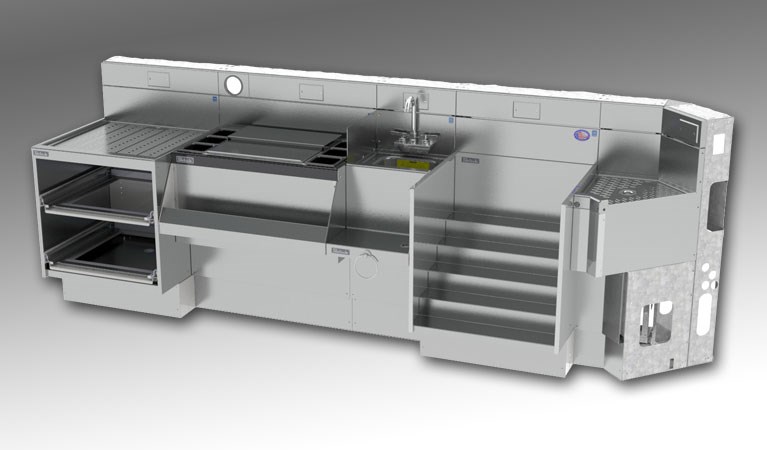

Modular Bar - Void Section

The most time-consuming portion of an underbar installation consists of the field layout/assembly of the bar sections and the construction of the bar frame in which the sections are attached. Our modular bar units ship pre-assembled in sections up to 8-1/2 ft. to drastically cut down time and labor while ensuring a sleek finish.

Quick Features:

• Pre-assembled at factory to cut installation time
• All underbar equipment is mounted to bar die wall to eliminate the need for legs
• Fastest and easiest way to install bar equipment at the job site
• Panels are removable from front and back for easy access
• Designed to allow bar die to be sealed to the floor
• Allows contractor to build bar top and front panels in advance and install when installation of equipment is complete

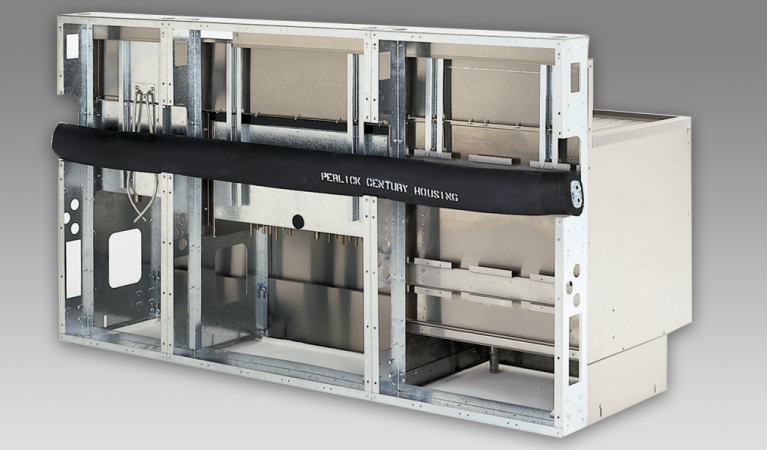

• Built-in chases hide plumbing, electric, soda and beer lines, and make it easier and faster to install utilities.
• Optional electrical outlets

Modular bar die is especially recommended in a new construction scenarios or a total renovation of an existing place. If you’re starting without any walls in your space, we’ll provide you with the wall, a chassis, and all of the equipment.

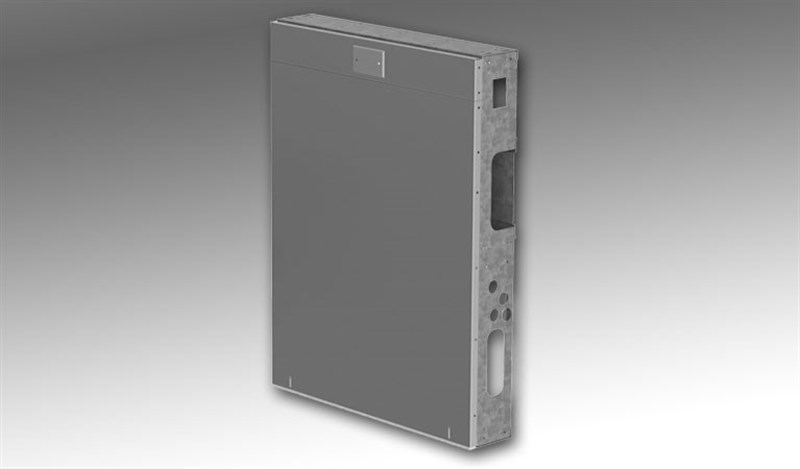

When you order Modbar for your project, Perlick will provide you with the die wall already connected to the equipment. Our die wall has all of the holes and chases provided for the easiest installation during all of your utility hookups.

From the bartender’s perspective, you have a tight fit and finish. The stainless steel front panel goes right to the floor and can be sealed with silicon which creates a seamless look, prevents water from going into the bar die, hides your drain and plumbing lines, and eliminates the need for legs.

Installing Perlick's modular bar die can save you a large amount of time and money during installation. We also offer Mylar templates that you can roll out while your equipment is in production, allowing you to begin working on your floor drains to help save time. We highly recommend modular bar die for new construction or a total renovation of an existing place.

• Pre-engineered sections up to 8-1/2' long assures exact fit, eliminated on-site adjustments
• All metal construction conceals beverage and utility lines
• Interior finish panel is adjustable for sealing to the floor
• Set-in-place beverage line chase eliminates damage to insulated beverage lines
• Bar front panels are easily removed for quick access to all utilities and beverage lines
• Bar top and front panels can be prefabricated to reduce on-site millwork costs
• Factory-installed faucets and drain sockets
• Optional electrical outlets, fluorescent lights and LED lights
